Rotary Rack Oven

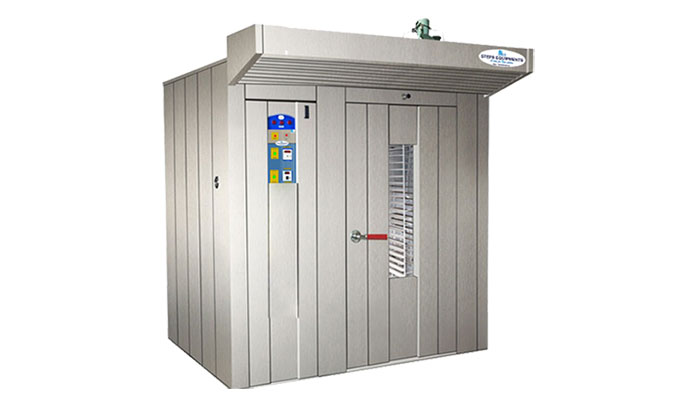

Rotary RACK OVEN

Owing to our expertise, we are manufacturing and supplying superior quality Rotary Rack Oven. This is manufactured using premium quality raw material and latest technology in accordance with the set global standards. Offered product is tested on well defined parameters of quality using the best testing machines.
Rotary Rack Oven is well recognized in the bakery industry for delivering exceptional performance and easy handling of multi-tasking processes in a fast paced working environment.

    Salient Features

  • Sturdy and elegant construction.
  • Heat resisting glass for viewing.
  • Environment friendly operation.
  • Highly efficient thermal insulation.
  • Fluorescent light for better vision of products.
  • Automatic imported sequence controlled burner for diesel / gas fuel.
  • Hot air circulation through adjustable ducts for perfect & uniform baking.
  • Stainless steel (hairline finish) sheet on front & side panel.

GET A QUOTES

CAPACITY OF THE OVEN

Model & Tray Size Bread 400 gm Buns 45 gm Dry Rusk Sponge Cake Biscuits Kharis
STP - 60A ,Tray Size
450mm x 450mm (18” x 18”)		 64 Loaves
1 Trolley x 8 Shelves		 192 Nos.
1 Trolley , 12 Trays		 8 Kgs
1 Trolley , 12 Trays		 15 Kgs
1 Trolley , 8 Trays		 7.5 to 8.5 Kgs
1 Trolleys , 12 Trays		 6 Kgs
1 Trolley , 12 Trays
STP - 70 ,Tray Size
450mm x 450 (18” x 18”)		 80 Loaves
1 Trolley x 10 Shelves		 224 Nos.
1 Trolley , 14 Trays		 9.5 kgs
1 Trolley , 14 Trays		 19 Kgs
1 Trolley , 10 Trays		 9 to 10 Kgs
1 Trolley , 14 Trays		 7 Kgs
1 Trolley , 14 Trays
STP - 80 ,Tray Size
450mm x 700mm (18” x 27”)		 120 Loaves
1 Trolley x 10 Shelves		 336 Nos.
1 Trolley , 14 Trays		 13 to 14 kgs
1 Trolley , 14 Trays		 38 Kgs
1 Trolley , 10 Trays		 15 to 16 Kgs
1 Trolley , 14 Trays		 9 Kgs
1 Trolley , 14 Trays
STP - 90 ,Tray Size
450mm x 700mm (18” x 27”)		 168 Loaves
1 Trolley x 14 Shelves		 432 Nos.
1 Trolley , 18 Trays		 18 to 20 kgs
1 Trolley , 18 Trays		 53 Kgs
1 Trolley , 14 Trays		 20 Kgs
1 Trolley , 18 Trays		 12 Kgs
1 Trolley , 18 Trays
STP - 110 ,Tray Size
600 x 800mm (23.5” x 31.5”)		 210 Loaves
1 Trolley x 14 Shelves		 630 Nos.
1 Trolley , 18 Trays		 25 to 28 kgs
1 Trolley , 18 Trays		 75 Kgs
1 Trolley , 14 Trays		 28 Kgs
1 Trolley , 18 Trays		 17 Kgs
1 Trolley , 18 Trays
STP - 130 ,Tray Size
450 x 700 (18” x 27”)		 336 Loaves
2 Trolleys x 14 Shelves		 864 Nos.
2 Trolleys , 36 Trays		 36 kgs
2 Trolleys , 36 Trays		 106 Kgs
2 Trolleys , 28 Trays		 40 Kgs
2 Trolleys , 36 Trays		 24 Kgs
2 Trolleys , 36 Trays
STP - 170 ,Tray Size
600 x 800mm (23.5” x 31.5”)		 420 Loaves
2 Trolleys x 14 Shelves		 1260 Nos.
2 Trolleys , 36 Trays		 50 to 56 kgs
2 Trolleys , 36 Trays		 150 Kgs
2 Trolleys , 28 Trays		 56 Kgs
2 Trolleys , 36 Trays		 34 Kgs
2 Trolleys , 36 Trays
STP - 180 ,Tray Size
450 x 700 (18” x 27”)		 672 Loaves
4 Trolleys x 14 Shelves		 1728 Nos.
4 Trolleys , 72 Trays		 72 kgs
4 Trolleys , 72 Trays		 212 Kgs
4 Trolleys , 56 Trays		 80 Kgs
4 Trolleys , 72 Trays		 48 Kgs
4 Trolleys , 72 Trays
STP - 220 ,Tray Size
600 x 800mm (23.5” x 31.5”)		 840 Loaves
4 Trolleys x 14 Shelves		 2520 Nos.
4 Trolleys , 72 Trays		 100 to 112 kgs
2 Trolleys , 72 Trays		 300 Kgs
4 Trolleys , 56 Trays		 112 Kgs
4 Trolleys , 72 Trays		 68 Kgs
4 Trolleys , 72 Trays

OVEN SPECIFICATION

Model Dimension (WXDXH) Max. Temp Connected Load Weight (KG) Min. Dim. to take Oven in (HXW)
STP - 60A 1350(W) x 1000(D) x 1920(H)mm
54”(W) x 40(D) ” x 76 ”(H)		 300° C 1.5 KW (2 HP)
3 Ph or 1 ph		 900 Kg 2000(H) x 1100(W)mm 80 ” x 44 ”
STP - 70 1350(W) x 1000(D) x 2200(H)mm
54”(W) x 40(D) ” x 87 ”(H)		 300° C 1.5 KW (2 HP)
3 Ph or 1 ph		 1000 Kg 2300(H) x 1100(W)mm 91 ” x 44 ”
STP - 80 1625(W) x 1400(D) x 2200(H)mm
64”(W) x 55(D) ” x 87 ”(H)		 300° C 1.5 KW (2 HP)
3 Ph or 1 ph		 1200 Kg 2300(H) x 765(W)mm 91 ” x 30 ”
STP - 90 1625(W) x 1400(D) x 2400(H)mm
64”(W) x 55(D) ” x 95 ”(H)		 300° C 2 KW (2.5 HP)
(415VAC, 50HZ)		 1400 Kg 2500(H) x 765(W)mm 100 ” x 35 ”
STP - 110 1940(W) x 1588(D) x 2400(H)mm
77”(W) x 63(D) ” x 95 ”(H)		 300° C 2.75 KW (4 HP)
(415VAC, 50HZ)		 1650 Kg 2500(H) x 950(W)mm 100 ” x 38 ”
STP - 130 2130(W) x 1730(D) x 2400(H)mm
84”(W) x 69(D) ” x 95 ”(H)		 300° C 2.7 KW (4 HP)
(415VAC, 50HZ)		 1950 Kg 2500(H) x 970(W)mm 100 ” x 39 ”
STP - 170 2820(W) x 2110(D) x 2400(H)mm
111”(W) x 83(D) ” x 95 ”(H)		 300° C 4.5 KW (6.2 HP)
(415VAC, 50HZ)		 2500 Kg 2500(H) x 1400(W)mm 100 ” x 56 ”
STP - 180 3020(W) x 2250(D) x 2400(H)mm
119”(W) x 89(D) ” x 95 ”(H)		 300° C 4.5 KW (6.2 HP)
(415VAC, 50HZ)		 3000 Kg 2500(H) x 1350(W)mm 100 ” x 54 ”
STP - 220 3585(W) x 2650(D) x 2400(H)mm
142”(W) x 105(D) ” x 95 ”(H)		 300° C 4.5 KW (6.2 HP)
(415VAC, 50HZ)		 4000 Kg 2500(H) x 1500(W)mm 100 ” x 60 ”
